Brand Name : SANTO
Model Number : CD/MD/BCD/BMD/HC
Certification : ISO, CE
Place of Origin : CHINA
MOQ : 1set
Price : 600USD~2000USD /set
Payment Terms : L/C, T/T, Western Union
Supply Ability : 8000set/year
Delivery Time : 10 working days
Packaging Details : Electrical and other parts packed by high quality plywood crate
After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Field maintenance and repair service
Feature : Wire Rope Hoist
Max. lifting height : 6m~30m
Rated lifting moment : Different
Control method : Wireless Remote Control, Pendant Control
Rated loading capacity : 0.5-20t, max up to 50t
Color : Green, Yellow, Blue, or as requirments
Power source : 3 Phase 380V 50hz or be customized
Main electrical parts : Chint, or as requirments Siemens, Schneider
Lifting Speed : 0.3-8m/min
HS Code : 84251100
10 Ton Low Headroom Electric Hoists Fixed In Boxed Type Eot Crane Using
Description:
Low headroom wire rope electric hoist is improved from CD and MD type electric hoist, the working conditions are same as CD and MD type wire rope electric hoist,it increase more lifting room and can save construction cost of workshop, can lift the material to a more higher position.
This type wire-rope electric hoists can be widely used to hoist heavy objects, or installed on the straight or curve I-steel beam of Single-girder Cranes. They can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.
Applications:
1. Factory,workshop,warehouse,store;
2. Logistic,dock,port , freight yard ;
3. Construction building,mine,etc
Specification:
Loading capacity | 0.5 ~ 32t |
Lifting height | 3 ~ 30 m or customized |
Lifting speed | Single speed: 0.3 ~ 8 m/min; or customized Double speed: 0.3/3 m/min, 0.7/7 m/min or customized |
Working class | M3 ~ M4 |
Working temperature | -20 ~ 40 ℃ |
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
Control voltage | DC-36 / 48V |
Motor protection class | IP54 / IP55 |
Control way | Ground handle control(Push button),wireless remote control,cabnient control |
Safety device | Buffer,current overload protection,overload device,power failure protection |
Application area | Factory,workshop,warehouse,power station,logstic,etc. |
Painting color | Yellow,Red or Customzied |
Detailed Features:
Photos:
![]() |

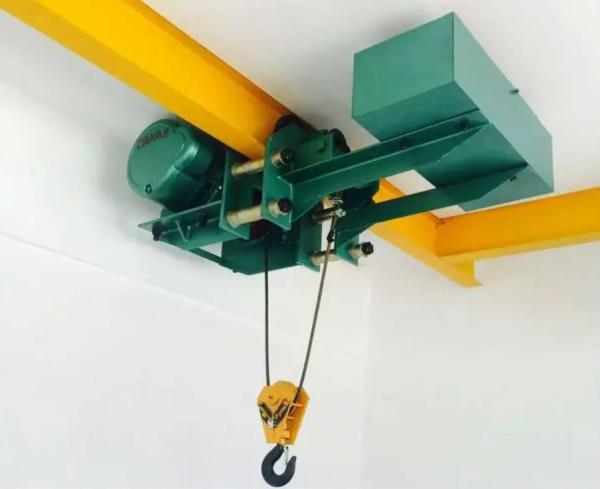

10 Ton Low Headroom Electric Hoists Fixed In Boxed Type Eot Crane Using Images |
